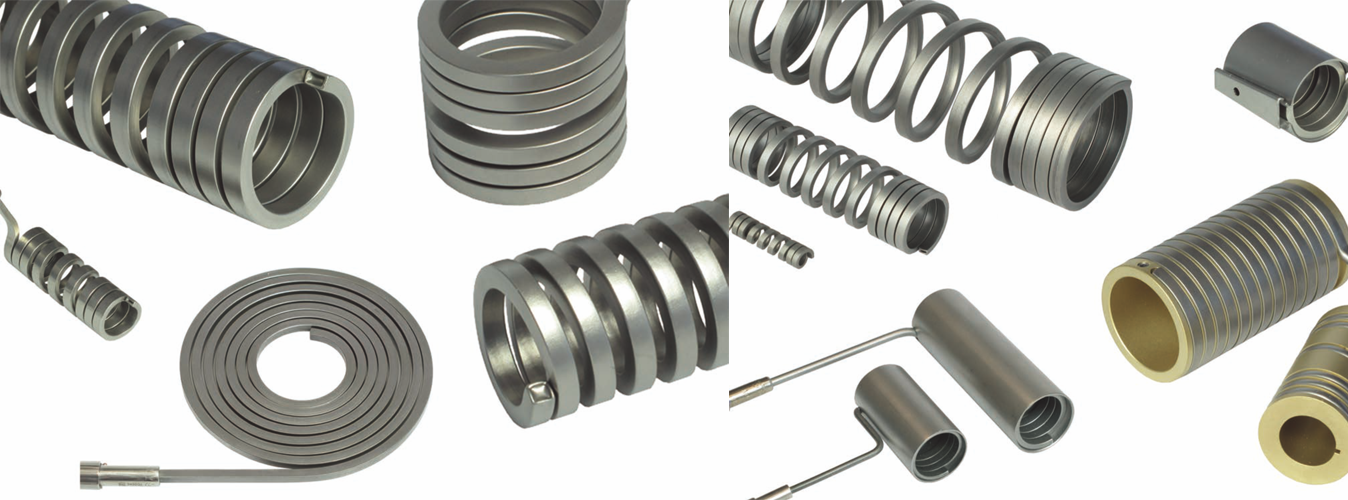

EUROHEAT manufactures high quality MINITUBULAR heaters that assure the best with respect to safety and performance. MINITUBULAR heater owes its importance to his great versatility; the possibility to reach high working temperatures in small spaces allows to support the most difficult needs. EUROHEAT MINITUBULAR heaters can be manufactured with differents lenghts, powers and sections, and are available from stock also with thermocouple built-in (typeJ).

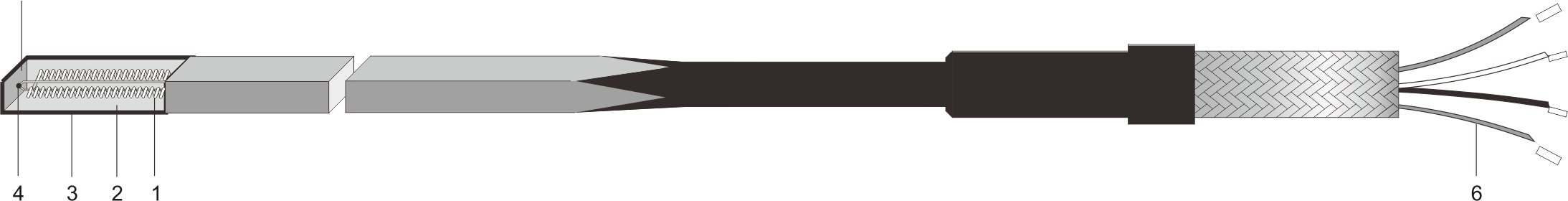

1 Nickel-chrome 80/20 resistance wire

2 High purity compacted magnesium oxide

3 Stainless steel sheath

4 Built-in thermocouple type J

5 Tig welded bottom disc

6 PTFE insulated nickel leadwires

TO ORDER SPECIFY ：

1) Code number

2) Internal diameter (D)

3) Spiral length (L)

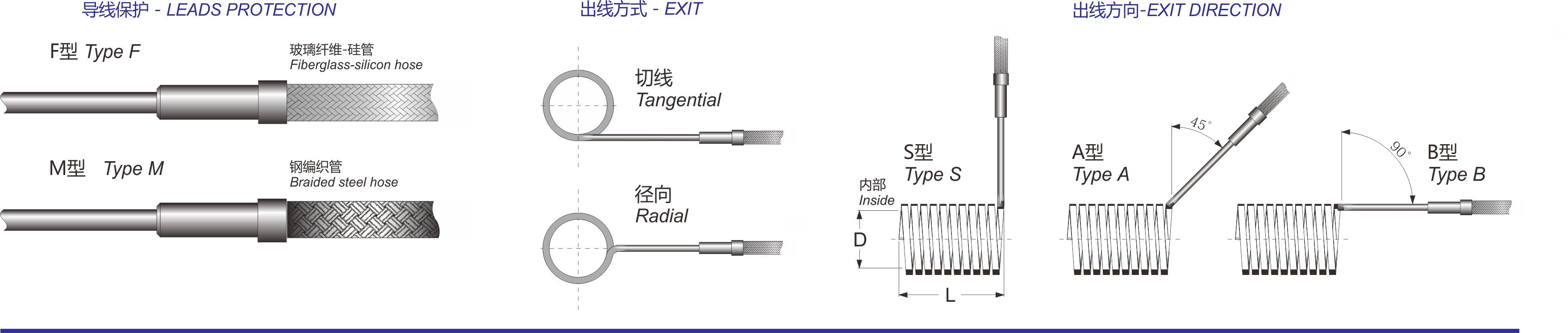

4) Leads protection

5) Leads exit type

6) Leads exit direction
