Two control zones in one card

Heater dehumidifying function at constant low power

 AI and phase shift for high precision control

Compact size, streamline housing

External TRIAC with good heat dissipation

Protection for heater and T/C misplace

 Selectable output current for 15A and 30A

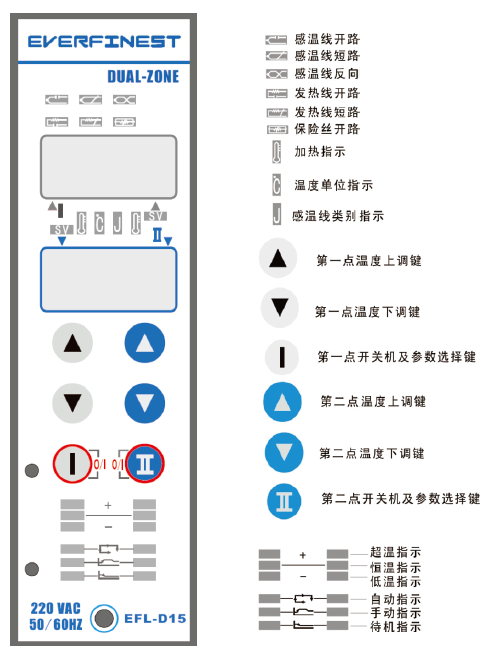

Specifications of temperature control module EFL-D15

Input power:  AC185-245V,50/60HZ,15A

Loading:  15A,100W-3650W

Output type:    PMW (Pulse width modulation). SSR

Thermocouple Type:   J or K

Temperature unit:   ℃ ℉

Temperature control range:   50℃-550℃

Temperature stability: +0.5%
