• One control zone in one card


•   Heater dehumidifying function at constant low power


• Contactless switch design

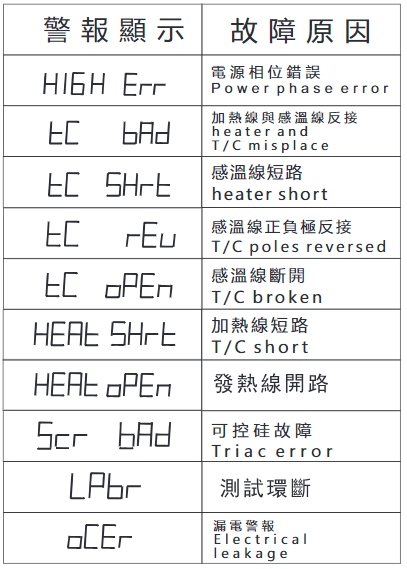

• Protection for heater and T/C misplace


• AI and phase shift for high precision control


•  Industry standard card slot


• Easily adopt to different working environment


• Selectable output current for 15A and 30A

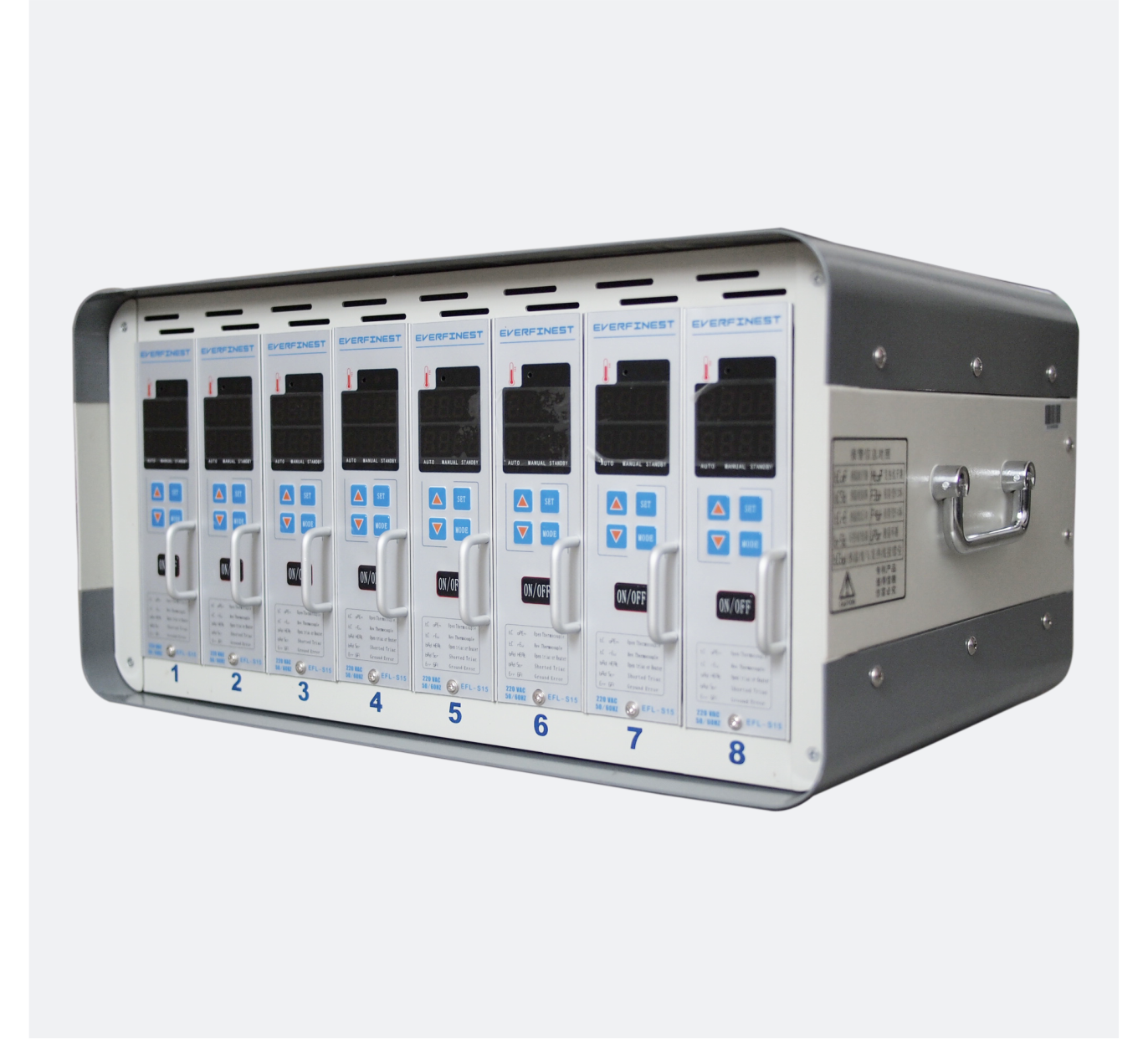

Specifications of temperature control module EFS-S15

- Temperature stability: +0.5%

- Heater protection function

- Temperature control type: FUZZY+PIDD AI and phase shifting and user defined PID control

- Internal measurement loop for background temperature compensation

- Voltage input protection for T/C

- Soft start to eliminate the current leakage caused by humidified heater

- Fuse: F1, F2: 250V-15A

- Input power:   AC 185-245V,50/60HZ,15A

- Loading: 15A, 100W-3650W

- Output type:  PMW (Pulse width modulation). SSR

- Thermocouple Type:  J or K

- Temp units:  ℃ / ℉

- Temperature control range: 50℃ -550℃
