Heater current monitoring

Heater dehumidifying function at constant low power

Deviation Alarms

Manual output mode

Mold data output & input function

Simple intuitive and user-friendly operation interface

Integrated module card slot design for easy maintenance

External working status signal light optional

PC connection (optional)

Communication with injection molding machine (optional)

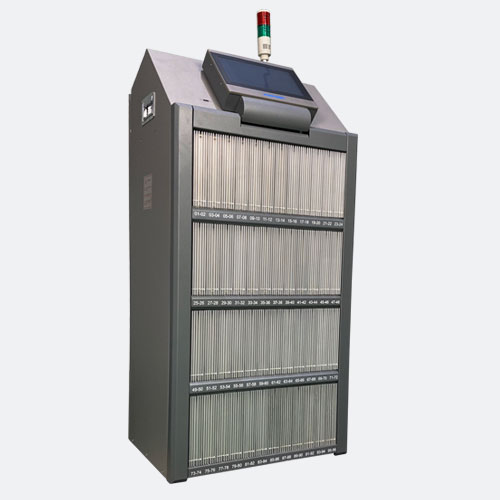

Specifications of temperature control module EFL-S15

- Ambient Temp: 32°F to 131°F（0°C to 55°C）

- Relative humidity 10%-95%

- Supply power AC 185-245V,50/60 HZ

Sensor type J or K -

- Temp Unit °C or °F

- Temp control range 45°C to 550°C

- Temp accuracy ±3%

- Repeat accuracy ±0.1%

- Temp stability: ±0.5%

- Temp accuracy ±3%

- Noise rejection: CMMRR 100DB

- Sampling frequency 10HZ(100ms)

- Loading per zone  15A

- F1, F2, F3, F4: 250V-15A
